• AutoEnginuity Domestic Package with CF-31 Laptop

    AutoEnginuity Domestic Package with CF-31 Laptop

    $1,150.00

    SKU SP05-CF31

    AutoEnginuity is sold as a "base" package (this item), and then you purchase "Enhanced" coverage for each additional item on which you would like to have full functionality. This package is read-only with the addition of the CF-31 laptop.



    About the AutoEnginuity Base Unit

    AutoEnginuity's ScanTool is a hardware and software combination for Windows-based PCs and Laptops.

    AutoEnginuity's ScanTool was designed to be as easy to learn—as it is powerful. ScanTool comes with an automated installation process, a complete and comprehensive User Guide, and an easy-to-use interface. You won't have to spend valuable time learning another piece of software, you can focus on what's important—servicing the vehicle.

    Our newly updated connector comes with our latest software release. Including new features such as save and print DTC and IM/Mode 6 data, playback, savable configurations, and translated Mode 6 data. Independent service shops and emissions training centers will enjoy being able to print DTC and IM/Mode 6 data for their customers. As with all our software updates--it's free!

    onboard test results
    Includes CF31 Laptop

    This laptop has been professionally refurbished. All dust covers, port covers, and every inch of this laptop have been meticulously cleaned; the entire top cover, hinges, and handle have been rhino lined to give not only an even better level of protection.

    See Bundle Specifics

    CF-31 Laptop
    • Windows 10 Pro Installed with all Updates. We are an authorized Microsoft Refurbisher, so you receive a genuine product key and recovery DVD.
    • 4 GB RAM
    • Dual-Core CPU running at 1.66 GHz each
    • Integrated Wifi
    • Integrated Bluetooth
    • 128 GBSSD(SolidState Drive). The solid-state drives make this computer"ultra" fast, as it goes from off to working in Windows in less than 45 seconds. Compare that to a "regular" hard drive that takes around 2 minutes. This SSD drive is brand new, and comes with a 3-year warranty! (Through SSD manufacturer)
    • 3 USB ports
    • 1 Serial Port
    • 2 PCMCIAslots (1 is Express)
    • SDCard reader
    • 1394 Port
    • Docking Port
    • The battery holds a charge for 2+ hours

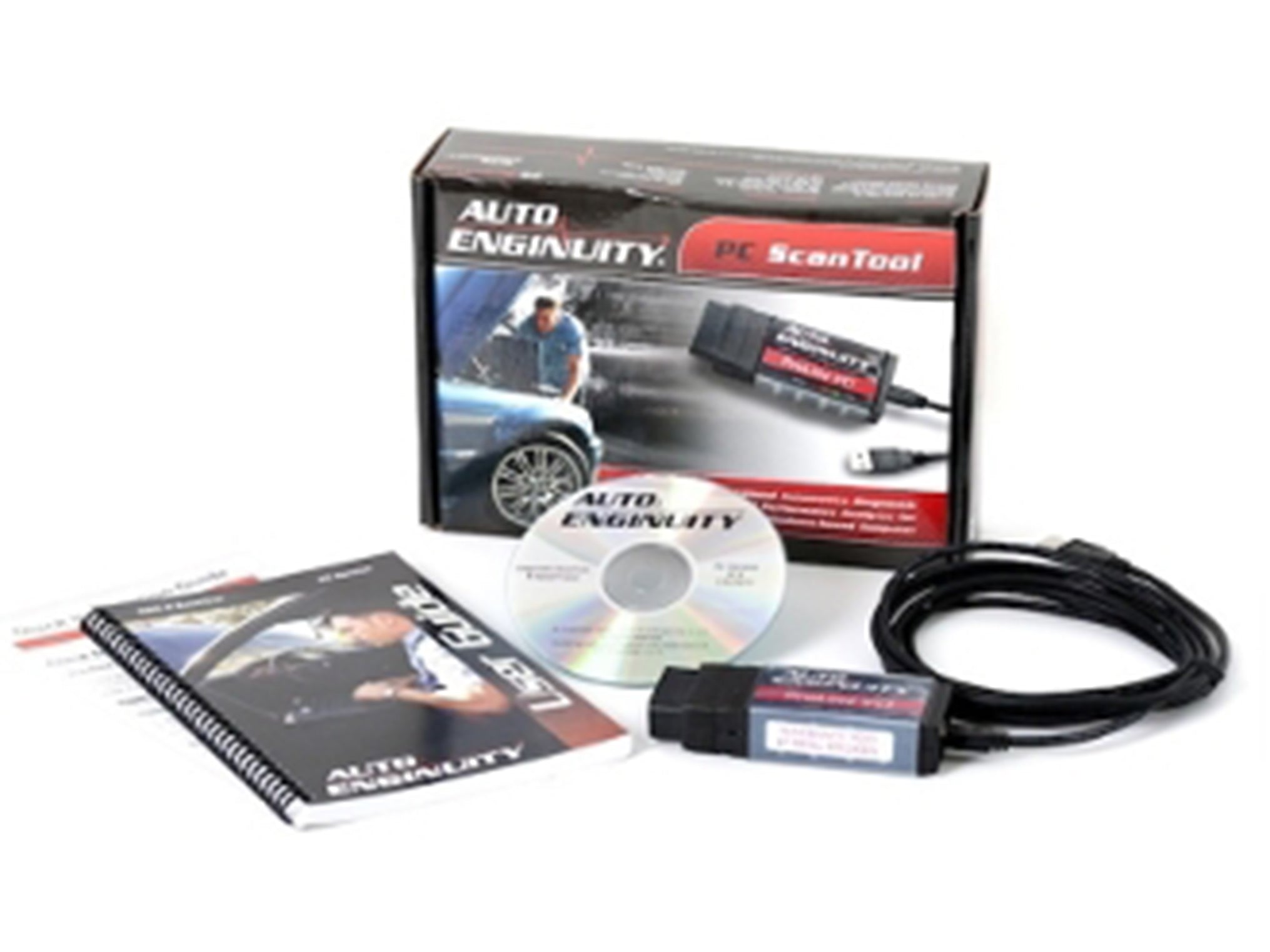

    The ScanTool package consists of:
    • AutoEnginuity's software
    • AutoEnginuity's OBD-II vehicle interface
    • USB 2.0 interface and cable
    • User Guide
    • Quick Installation Guide
    features
    This package from AutoEnginuity will allow you to view diagnostic codes on EVERY engine, plus it allows you to have full bi-directional control on all the major domestics -- Ford, GM, Dodge, and Chevrolet. This package gives you the ability to perform tests such as listed below.

    See Full List of Tests

    Ford Family - Supports over 7,900 sensors from 122 systems. This includes support for non-US models such as Ka, Mondo, Galaxy, and Fairline.

    • PATS Timed Key Programming ('96 - '08)
    • KOEO
    • KOER
    • Power Balance (CAN-based models)
    • EVAP Bay Test
    • Service Bleed (Non-CAN support not available with ProLine currently)
    • Buzz Injector
    • Cylinder Contribution Test
    • Switch Test
    • Glow Plug Test
    • System Self-Test
    • Low - and High Speed Fan
    • All Outputs On/Off
    • Injector Coding (1.8L and 2.0L)
    • KAM Reset
    • Misfire Monitor Neutral Profile Correction
    • Tire Size Programming up to 40" ('99-'03 7.3L, and '04-'07 6.0L trucks)
    • IVD Initialization
    • Steering Angle / Yaw Rate / Acceleration Sensor Reset ('03 Explorer and Lincoln LS)
    • Passenger Seat ReZero and Passenger Weight Reset
    • Power Seat Calibration Test
    • Audio Network Communication Test
    • Vehicle In-Motion IO Test
    • Front Wiper Self-Test
    • Rear Wiper Self-Test
    • Diesel Particulate Filter Reset, Clear EGR Adaptive Tables, and Clear Fuel Injector Adaptive Tables

    GM Family - Includes support for Buick, Cadillac, Chevrolet, GMC, Hummer, Oldsmobile, Pontiac, and Workhorse. Over 6,000 sensors from over 68 systems is supported. There are over 2,000 bi-directional command and system level tests that can be performed!

    • ABS Automated Bleed Routine (ProLine Connector)
    • Crank Variation Learn
    • Injector Flow Rate Programming (CAN-based Diesels)
    • Key Fob Programming
    • SDM Setup and Part Number Programming
    • Idle Learn
    • TDC Learn
    • Tire Pressure Sensor ID Programming (via CAN-based Remote Control Door Lock Receiver)

    Chrysler/Dodge/Jeep - Coverage includes diesel Cummins engines, Dodge Sprinters Vans, and much more!

    • EGR System Test
    • EVAP System Monitor Service Test
    • Erase All DTC Fault Codes
    • Generate Full Field Test
    • Gov & 3-4 Shift Valve Test - JTEC Only
    • Leak Detect Pump Test
    • Purge Vapors Test
    • Reset All Adaptive Memory Fuel Cells
    • Reset All Non-Volatile Memory
    • Reset CAM/Crank Misalignment
    • Reset CAM, Crank, and Sync Status Record
    • Reset Duty Cycle Monitor
    • Reset Engine Running Time Record
    • Reset Fuel Shut-off Record
    • Reset Intake Airflow Control Stepper Motor Position
    • Reset Trip Information
    • Set Sync Signal - JTEC Only
    • Set Minimum Throttle Position to Maximum
    • Torque Converter Clutch Test - JTEC Only
