The Autel MaxiSYS MS909EV is an advanced diagnostic tablet designed for electric, hybrid, gas, and diesel vehicles. It combines comprehensive vehicle diagnostics with dedicated high-voltage system testing and battery pack analysis, giving technicians the tools needed to diagnose modern EV and hybrid systems safely and efficiently.
About the Autel MaxiSYS MS909EV
Features:
- Advanced diagnostics for U.S., European, and Asian electric, hybrid, gas, and diesel vehicles.
- Rapid high-voltage system analysis with the ability to read and erase fault codes and view live data.
- State of Charge (SOC) and State of Health (SOH) battery analysis for evaluating battery condition.
- Battery pack diagnostics through OBD or direct connection using the included EVDiag Box, specialty cables, jumpers, leads, and probes.
- Detailed high-voltage system diagrams, component and socket information, and step-by-step disassembly and connection guidance.
- Bi-directional active tests, special functions, coding, and adaptations.
- Topology module mapping on supported vehicles for a color-coded view of ECU and network communication status.
- Service menu with 40+ service and reset functions.
- Includes MaxiFlash VCI with J2534 pass-thru programming capability and support for modern vehicle communication protocols.
- Automatic software updates over Wi-Fi with real-time update notifications.
EV Battery and High-Voltage Diagnostics
The MS909EV is built specifically to help technicians diagnose electric and hybrid vehicle battery systems. Its included EV diagnostic hardware provides detailed guidance for high-voltage testing and direct battery pack analysis.
- Perform battery pack analysis through the vehicle's OBD connection or directly at the battery pack.
- Analyze battery State of Charge and State of Health.
- View detailed battery pack data and high-voltage system information.
- Follow on-screen connection diagrams for specialty cables and jumpers to support safe testing procedures.
- Diagnose battery management systems and supported high-voltage components.
Hardware and Specifications

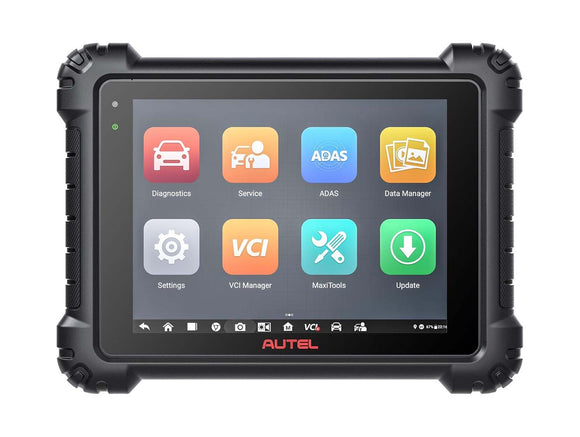

- 9.7-inch TFT-LCD capacitive touchscreen with 1536 x 2048 resolution.
- Qualcomm 660 Octa-Core processor.
- 4GB RAM and 128GB onboard storage.
- Android operating system.
- 15,000mAh lithium-polymer battery.
- Dual-band Wi-Fi, Bluetooth 5.0, GPS, USB, HDMI, and expandable SD card support.
- 16-megapixel front and rear cameras.
- Includes one year of free software updates via Wi-Fi.

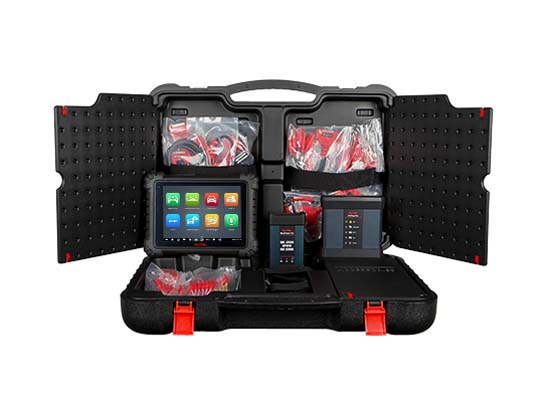

What's Included

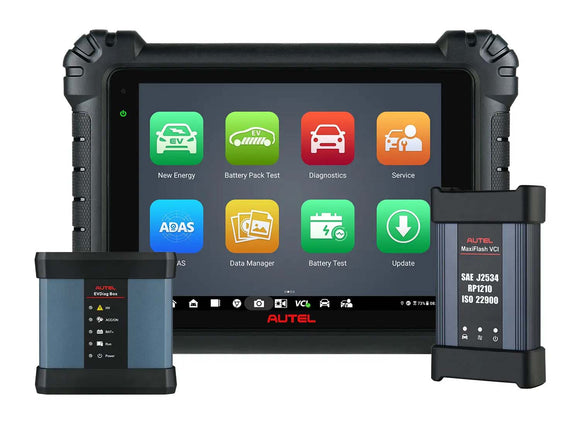

- Autel MaxiSYS MS909EV Diagnostic Tablet
- MaxiFlash VCI / J2534 Vehicle Communication Interface
- EVDiag Box
- EV diagnostic connectors, specialty cables, leads, probes, and jumpers
- Vehicle communication and charging accessories
- Protective carrying case
