This is a limited time offering, which means you’ve got a short window to get a rugged tablet kit that helps you take on more jobs with less hassle.
If you’re tired of turning away work because your tools can’t handle every make and model, this kit puts an end to that. The Universal Truck Diagnostic Kit gives you real coverage across the board and helps you stop losing time digging through outdated software or dealing with tools that only do half the job.
You get the commands that keep trucks moving, including DPF regens, derate disables, cruise and road speed changes, and a full slate of dealer level functions. That means faster diagnostics, fewer comebacks, and more billable hours every week.
And when you’re ready to level up even further, the kit grows with you. You can add full repair information, virtual diesel technician support, and other tools that help your shop work smarter, not harder.
Grab it while it’s still available. More capability. More confidence. More revenue for your shop.

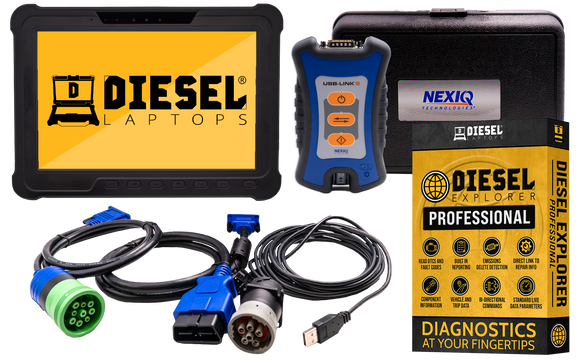

Kit Includes
- Flytech M285 Rugged Tablet - This rugged 10 inch tablet delivers fast processing, a sunlight readable Gorilla Glass screen, and hot swappable batteries built for demanding work in the field.
- Nexiq USB Link 3 Wireless Edition - The Nexiq USB Link 3 gives you fast, flexible diagnostics with CAN FD and DoIP support plus wired, Bluetooth and Wi Fi connections for seamless use with your PC, tablet or phone.
- Diesel Laptops 9 pin to 6 pin cable adapter - For vehicles with a 6 Pin diagnostic connector
- 12 Months Diesel Explorer Professional - Comprehensive diagnostic software for commercial trucks.

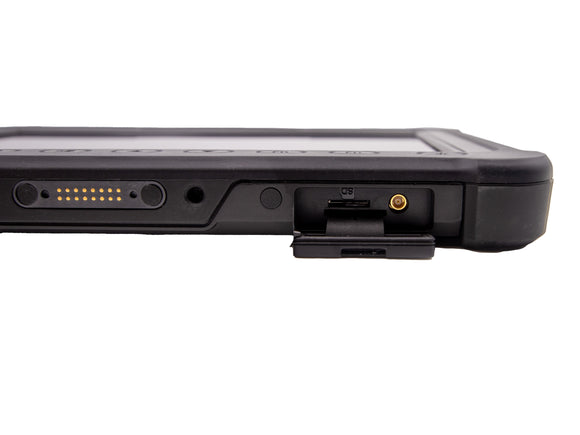

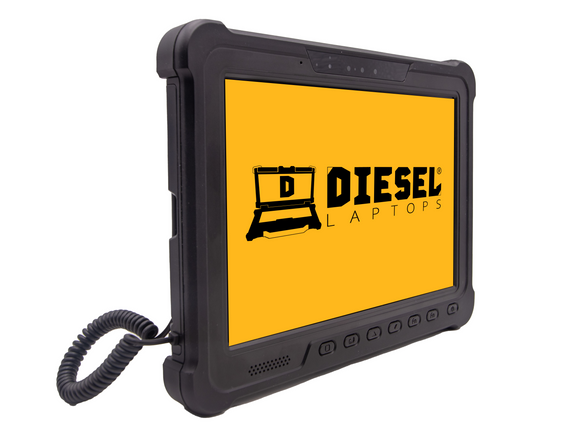

Flytech M285 Rugged Tablet
The Flytech M285 is a rugged, high performance tablet built to thrive in harsh work environments. It protects your hardware with MIL STD 810H durability, IP65 waterproofing and a tough Gorilla Glass display that stands up to impact and scratches. Its Intel Tiger Lake processor keeps your workflow moving fast, and the hot swappable battery design lets you stay powered through long days without slowing down.
See More Specifications
Flytech M285 Specifications:
- Intel Tiger Lake UP3 Processor
- 10" FHD Display With Gorilla Glass
- 800 Nits Sunlight Readable Screen
- Wide Operating Range From Minus 29°C To 60°C
- Hot Swap Battery Support
- Up To 9 Hours Of Battery Life
- One battery included, additional available for purchase
- MIL-STD-810H Rugged Certification
- IP65 Waterproof And Dustproof

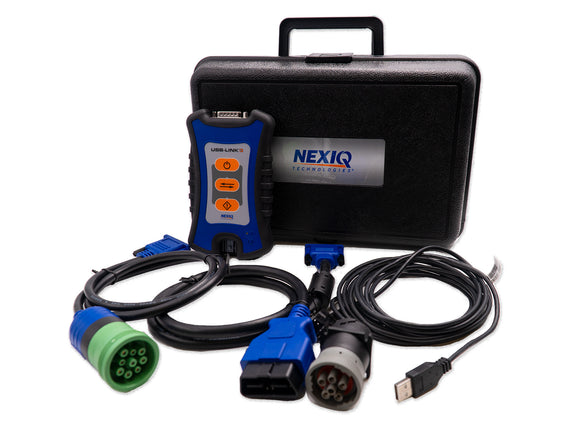

Nexiq USB Link 3 Wireless Edition
The Nexiq USB-Link 3 is a new, more capable USB-Link that supports CAN FD and DoIP protocols while providing the compatibility for a wide range of OEM diagnostics software. Designed for flexibility, the USB-Link 3 Wireless Edition connects to your PC, tablet, or smart phone via Bluetooth and Wi-Fi. In addition, the USB cable gives techs the option to directly connect to a PC when working in the field or during signal interruptions.
See Specifications
Protocol Support:
- J1708
- J1587
- Two-J1939/ISO 15765/CAN
- J1850 (VPW and PWM)
- ISO 9141/KW2000
- ALDL
- And more...
API Support:
- RP1210a/b
- J2534
Compatible Software:
- Diesel Explorer from Diesel Laptops
- Detroit Diesel Diagnostic Link (DDDL)
- Navistar ServiceMaxx
- Caterpillar Electronic Technician
- Cummins INSITE
- V-MAC III Service Diagnostic
- PTT/VCADS 1.12 (Mack and Volvo)
- Navistar Diamond Logic Builder (DLB)
- Freightliner ServiceLink
- Meritor WABCO HABS
- Bendix ACom Diagnostics
- And more...
Diesel Explorer Pro
Diesel Explorer is Diesel Laptops' very own comprehensive heavy-duty and medium-duty diagnostic software! This software will read all DTCs and faults from all standard vehicle modules including body controller, engine controller, transmission controller, and many more. After the first year, Diesel Explorer becomes read-only, with the option to purchase a monthly subscription. Scroll down to browse features!
Bi-Directional Functionality
With a professional subscription included with this kit, you get access to perform bi-directional commands such as DPF regenerations or Aftertreatment resets. More functionality is always in the works.
Learn More
Current List of Bi-Directional Commands
- Cummins: All Engines EPA07+
- DPF Regeneration
- Aftertreatment Maintenance- Reset All
- Aftertreatment Filter Installation
- DEF Dosing Pump Override Test
- Change Max Vehicle Speed
- Change Max Accelerator Vehicle Speed
- Change Max Cruise Control Speed
- Detroit
- 60 Series (Epa 07)
- DPF Regeneration
- Ash Accumulator Reset
- DD Series Engines (Epa 07)
- DPF Regeneration
- Ash Accumulator Reset
- DD Series Engines (Epa 10+)
- DPF Regeneration
- Ash Accumulator Reset
- SCR Replacement
- 60 Series (Epa 07)
- Dodge (Ram): Cummins 6.7 (13-17), DPF Regeneration
- Ford
- 6.7 Powerstroke (11-16), DPF Regeneration
- 6.7 Powerstroke (17-18), DPF Regeneration
- GMC/Chevrolet: Duramax (11-16), DPF Regeneration
- Hino: J05E/J08E (Epa 13+)
- DPF Regeneration
- DPR Reset
- International
- Maxxforce DT/9/10 (Epa 07+)
- Key On Engine Running Standard Test
- DPF Regeneration
- Aftertreatment Resets
- Maxxforce 11/13 (Epa10): DPF Regeneration
- N13
- DPF Regeneration
- DPF Replacment Reset
- SCR Tamper Fault Reset
- A26 (2017+)
- DPF Regeneration
- DPF Replacment Reset
- Aftertreatment Maintenance- Reset All
- SCR Tamper Fault Reset
- Maxxforce 7 (Epa 07+)
- Key On Engine Running Standard Test
- DPF Regeneration
- Aftertreatment Resets
- Maxxforce DT/9/10 (Epa 07+)
- Isuzu: 4Hk1 (14+)
- DPF Regeneration
- SCR Data Reset
- NOxSensor Data Reset
- DEF Control Module Reset
- Oxidation Catalyst Data Reset
- DPF Data Reset
- Mack: MP7/8 Engines Epa 13+ (Obd2 Connector)
- DPF Regeneration
- SCR Regeneration
- Exit Inducement Mode
- DPF Ash and Soot Level Reset
- SCR Reset
- NOx Sensor Reset
- Aft Hydrocarbon Injector Reset
- Mercedes: MBE 900/4000 engines (07+), DPF Regeneration
- PACCAR: MX 11/13 engines (EPA 10+)
- DPF Regeneration
- DPF Installation
- Disable DEF Derate
- Volvo: D11/13 Engines EPA 13+ (Obd2 Connector)
- DPF Regeneration
- SCR Regeneration
- Exit Inducement Mode
- DPF Ash and Soot Level Reset
- SCR Reset
- NOx Sensor Reset
- Aft Hydrocarbon Injector Reset
Emissions Delete Detection
This kit includes Diesel Explorer Professional, which grants you access to our industry first Emissions Delete Detection functionality. Detect Emissions tampering on EGR, SCR, and DOC/DPF. Current Manufacturers include Detroit, Cummins, International (Maxxforce engines).
Learn More
Current List of EDD Functionality
- International Maxxforce engines (2007+)
- Volvo/Mack Engines (2010+)
- Cummins Engines (2007+)
Direct Link to Repair Information
Link straight to additional repair information such as: Fault code Troubleshooting, Wiring Diagrams, Torque Specs, Engine Specs, TSB's, Labor times, and more.
Diesel Health Report
The Diesel Explorer Application can also automatically send reporting directly to the cloud and Diesel Laptops Diesel Health Platform. You can view all of your shop's diagnostic scans in one place on Diesel Health (separate Diesel Health subscription required).
Component Information
Here you'll see a list of all the modules that the adapter and software are picking up. You can also find information about these modules including manufacturer, serial number, and part number.
View Live Data
The Live data tabs will show you tons of vehicle information that is updated in real-time including coolant temperature, boost pressure, accelerator pedal position, and more. With the included Professional subscription, you get access to 100's of these parameters and the ability to filter and search them.
Vehicle and Trip Data
Here you can view static parameters such as fuel economy, total vehicle hours, and total distances. You can choose to view these parameters for the lifetime of the vehicle or for a given trip.
Built-in Reporting
Diesel Explorer has a built-in reporting feature that prints to a PDF format that includes Engine Data, DTCs, Components, Total Vehicle Data, and Total Trip Data.
Diesel Repair (Available Upgrade)
Running a truck repair business is tough. You need fast answers, accurate information, and tools that help you get the job done right. That's where Diesel Repair comes in.
What's Inside Diesel Repair?
With Diesel Repair, you have the tools to confidently take on more jobs, reduce downtime, and keep your customers satisfied.
Diesel Repair includes:
- Truck Fault Codes - Tap into the largest code database in the industry to search for MID, PID, SPN, FMI, and OEM flash codes.
- Technical Repair Docs - Instantly access, save, or print complete remove + replace information for your repair from anywhere.
- Wiring Diagrams - Searchable, color-coded, easy-to-understand wiring schematics for on-highway trucks that you can print or download to your device.
- VIN Decoder - Quickly decode your commercial truck VIN. Get detailed information including manufacturer, make, model, type, fuel type, engine info, and more.
- Symptom Based Troubleshooting - Provides easy-to-read diagnostic procedures for common fault symptoms.
- Truck Labor Times - Win your customers over with accurate labor time estimates and eliminate guesswork with our easy-to-use commercial truck SRTs.
- Parts Cross Reference - Cross 2.5 million+ heavy-duty parts at the push of a button. When you find the part, cross it with our aftermarket database to find the best option for you.
- Exploded Views - Find detailed exploded diagrams so you can identify the parts you need — even without a VIN.
- Diesel Dictionary - Over 1,000 acronyms, technical terms, and industry slang indexed and explained so you can be sure everyone is speaking the same language.
- Testing Procedures - Leverage decades of heavy-duty maintenance and troubleshooting know-how in no time.
- Customer Connect - Find new customers with a few simple clicks. Easily pinpoint fleets, dealerships, independent garages, towing services, and more in minutes with Diesel Repair's Customer Connect module.
