Isuzu IDSS Interface Adapter

by Isuzu

Isuzu IDSS Interface Adapter

$1,695.00
SKU ISUZU-IDSS

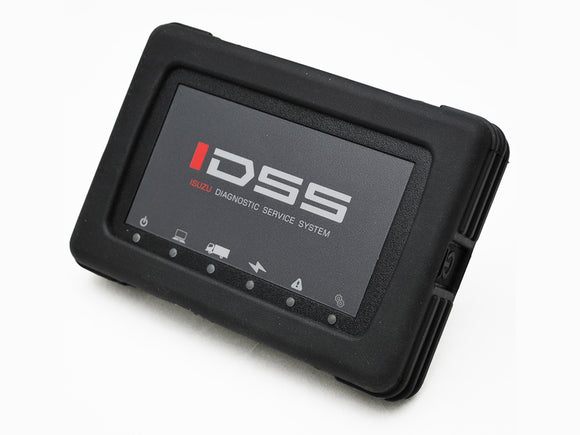

The Isuzu IDSS Interface Adapter is the only adapter that is supported by Isuzu for the IDSS Software.

Isuzu IDSS Interface Adapter

  • Rugged design to prevent damage in case of accident or abuse

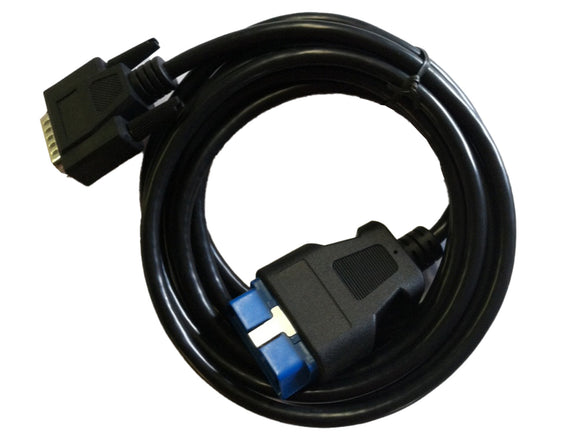

  • Includes OBDII Cable and USB Cable
  • The only supported adapter by Isuzu
  • The adapter is compatible with the following protocols: J1939, J1708, CAN, NRZ, LIN, KW2000, FlexRay, ISO 9141, J1850 VPW, J1850 PWM, ISO 15765.

Isuzu IDSS is the diagnostic software used at Isuzu dealerships. With this software, you can perform any of the diagnostic commands that dealership can, along with having the troubleshooting and wiring diagrams at your fingertips.

Isuzu IDSS Software

  • Complete vehicle coverage including: N-Series, Stripped Chassis, W-Series, F-Series, T-Series, C-Series, and H-Series
  • Complete engine coverage including
    • Diesel 5.2L (4HK1)
    • Diesel 5.2L (4JJ1)
    • Diesel 3.0L (4JJ1)
    • Diesel 7.8L (6HK1)
    • Diesel 4.8L (4HE1)
    • Gas 6.0L
    • Gas 5.7L
    • Propane 6.0L
    • Gas/Propane Hybrid 6.0L
  • All other vheicle ECUs such as Transmission, ABS, FMS Controller, Diesel Exhaust Fluid Control Module, Mimarmori ECU, Powertrain Interface Module (PIM), and many more.
  • Includes wiring schematics and troubleshooting guides
  • Perform all the same commands & diagnostics that dealer can do such as forced regens, parameter changes, injector programming, and many more
  • Includes 6 months of updates & support

You will receive an installation disc with your license code on it. If you are in a hurry, we can also provide a download link and email you the license code.

Frequently Asked Questions

Does the license ever expire? Yes, your program will expire after 6-months

How do I get updates after 6-months? You would need to purchase another 6-month update & support license from us.

If I decide to wait months/years and then update, is there a penalty? No, just pay for the 6-month update & support package and you will be caught up.

I already have a Nexiq USB Link or Nexiq USB Link 2. Can I purchase this without the IDSS Interface Adapter? Yes, but make sure you have an OBDII cable. Also, Isuzu will NOT support you with any issues if you are using any other adapter besides the IDSS interface.

Can I program or update an ECM calibration level? Yes, you can. Some can be more difficult then others, but you can always call us or IDSS Technical Support for assistance.

Works with Diesel Explorer

This Heavy and Medium Duty Diagnostic Software allows you to...

  • Easily see every DTC
  • Get information on components
  • View live parameters
  • View trip data
  • Generate reports and more!

Learn More
