    Diesel Laptops Bypass Breakout Cable for International MaxxForce & N-Series



    Diesel Laptops Bypass Breakout Cable for International MaxxForce and N-Series

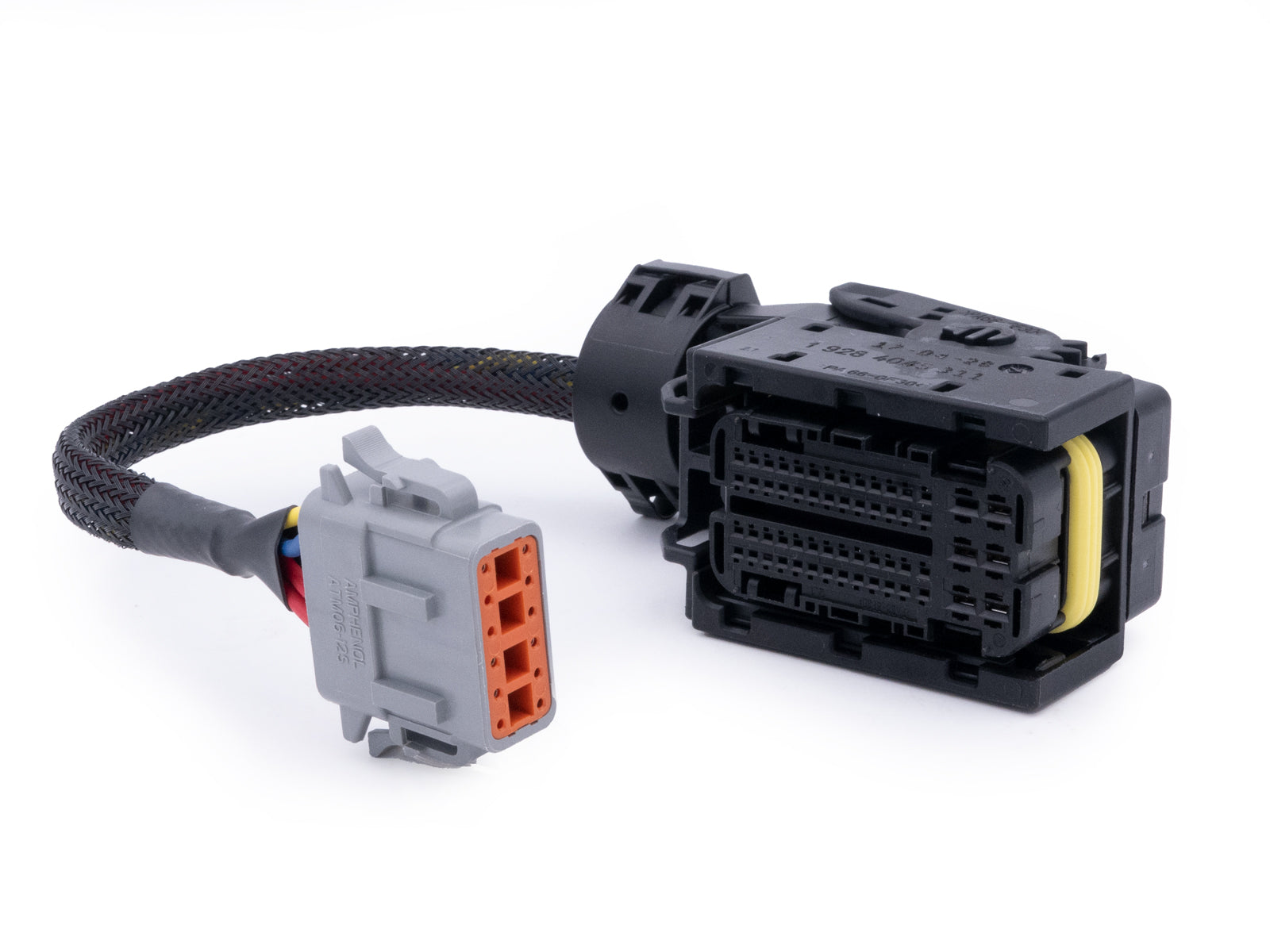

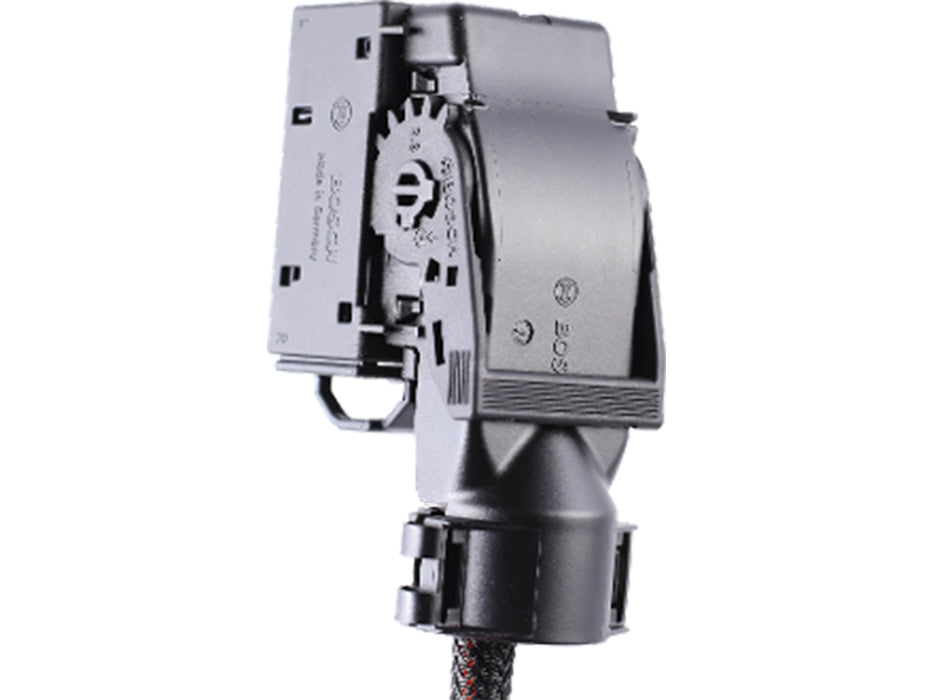

    This is a bypass breakout cable used to connect to International MaxxForce and N-Series engines.


    • All cables are tested on live ECMs and validated before shipping.
    • Professional, quality manufactured cable made in the USA.
    • 12 month warranty.

    This cable is used on International MaxxForce 13 and 15 engines, along with the N-Series. Specifically this works with the following: MaxxForce 11 (2010-12), MaxxForce 13 (2010-12), MaxxForce 15 (2013-14), N13 with SCR (2013-14), N13 with SCR (2015 and Newer).

    If your engine serial number is not listed, please call or email us so we can verify for you.

    Note: This cable also requires our Main Bypass Programming Cable to connect to the ECM. Our unique design allows you to purchase this main cable first, then purchase the "ends" that you need to connect to various ECMs.

    Why would you need an ECM breakout harness?
    • Most OEMs recommend NOT programming the vehicle through the dash connector, but instead go directly to the ECM. These are the perfect programming cables for such a project.
    • You are having issues with the diagnostic port on your commercial truck, and wish to bypass the vehicle wiring and go directly to the ECM.
    • You have an ECM that is not installed on the truck and wish to do programming or modifications on the workbench.
    Vendor: Diesel Laptops
    UPC: 735520732840
    Length: 10 inches
    Weight: 1 lb

    ECM Programming

    If you would like more information about ECM programming, check out this video or click below for a great blog post that goes in-depth on the subject, including what software is necessary.
