    Diesel Laptops Bypass Breakout Main Programming Cable

    $269.00

    SKU BYPASS-MAIN

    Diesel Laptops Bypass Breakout Main Programming Cable

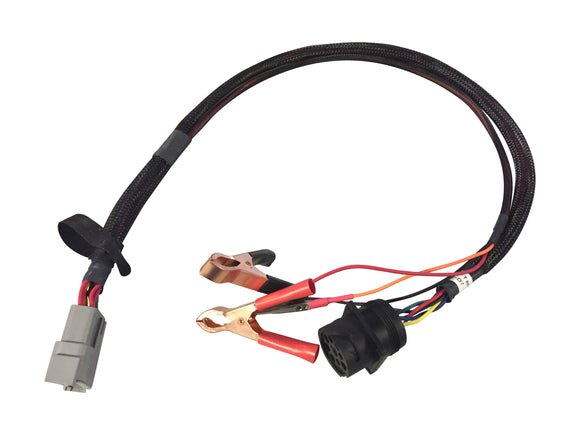

    This is the main cable harness used to connect directly to a commercial truck ECM.

    Features:

    • All cables are tested on live ECMs and validated before shipping.
    • Professional, quality manufactured cable made in the USA.
    • 12 month warranty on all components.

    This is our "main" cable that you can use to build your own unique bypass/breakout cable to connect directly to a commercial truck ECM. If you purchase any of our bypass cables individually, you will need this cable as well. Our bypass cables are a 2-piece system, with each one needing this one.

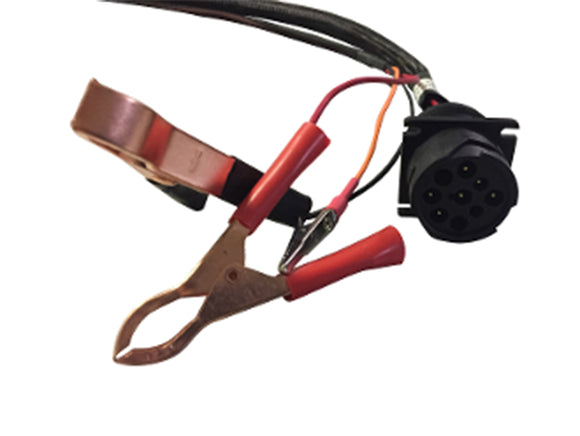

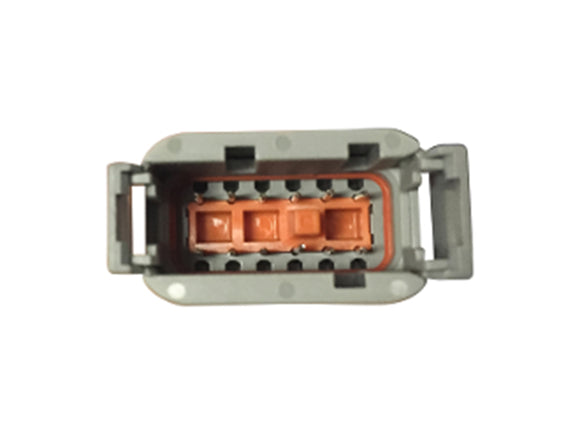

    This main harness connects to a power source and provides a 9 pin connector that is detachable. This allows you to purchase the ECM connectors you need, instead of having to purchase a completely new harness.

    Why would you need an ECM breakout harness?
    • Most OEMs recommend NOT programming the vehicle through the dash connector, but instead go directly to the ECM. These are the perfect programming cables for such a project.
    • You are having issues with the diagnostic port on your commercial truck, and wish to bypass the vehicle wiring and go directly to the ECM.
    • You have an ECM that is not installed on the truck and wish to do programming or modifications on the workbench.
    Vendor: Diesel Laptops
    Part Number: BYPASS-MAIN
    UPC: 735520736848
    Length: 24 inches
    Weight: 1.5 lbs

    ECM Programming

    If you would like more information about ECM programming, check out this video or click below for a great blog post that goes in-depth on the subject, including what software is necessary.

    Learn More
    Bypass Cable Kit

    Bypass Master Cable Kit

    This main cable is included in our Bypass Breakout Master Cable Kit along with the necessary cables to connect to Cummins, Detroit, and CAT engines.

    View Kit
    More Bypass Cables

    Additional Bypass Cables

    This main cable is one half of a two-piece system. To connect to the ECM, you'll also need the bypass cable for the engine to which you're connecting.

    View Cables

    Cable Finder

    The Cable Finder allows you to effortlessly find the appropriate cable for the make and model of Commercial Trucks, Off-Highway Equipment, and Marine Engines to ensure you have the cable you need.

    Go To Cable Finder
