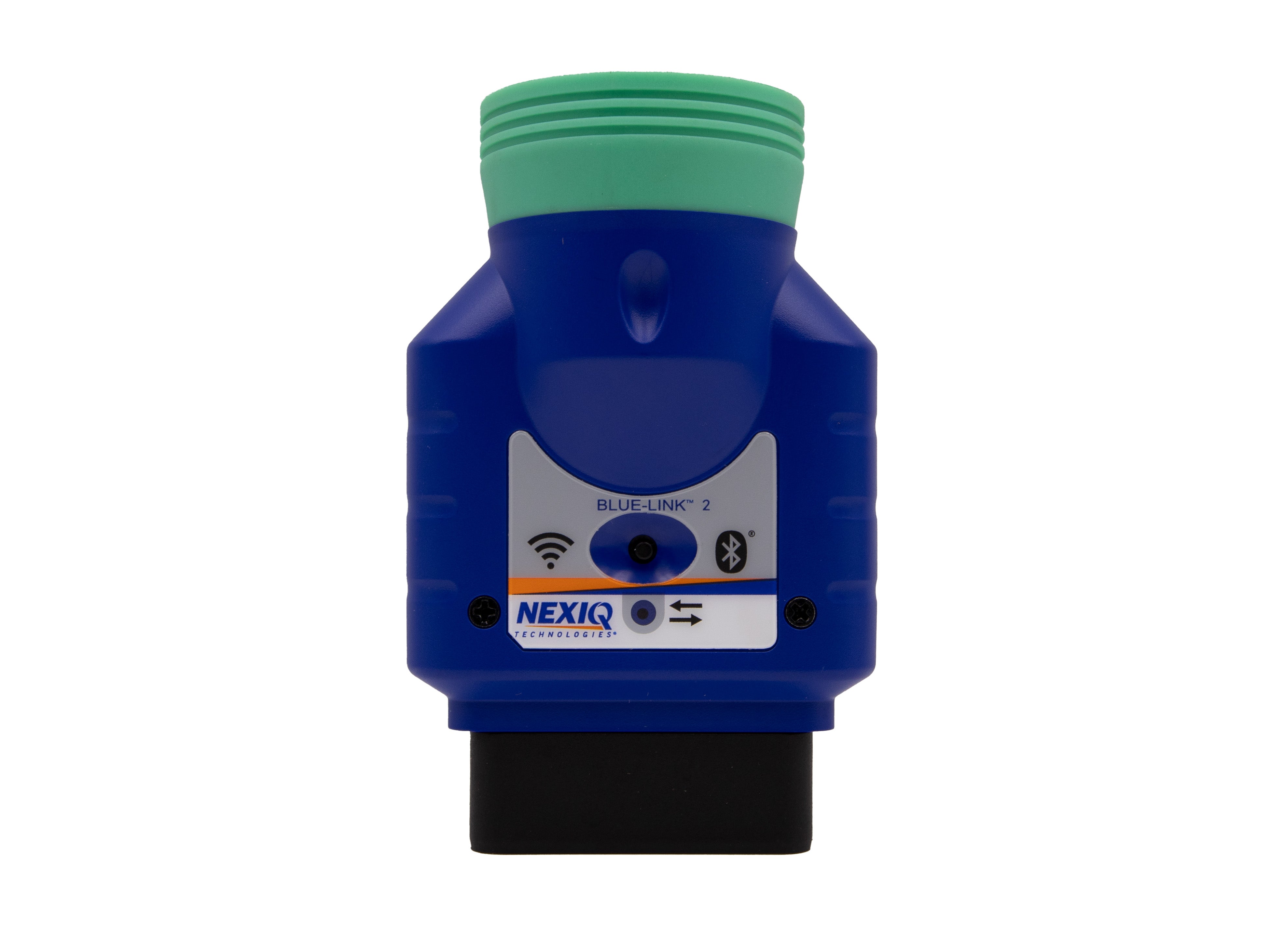

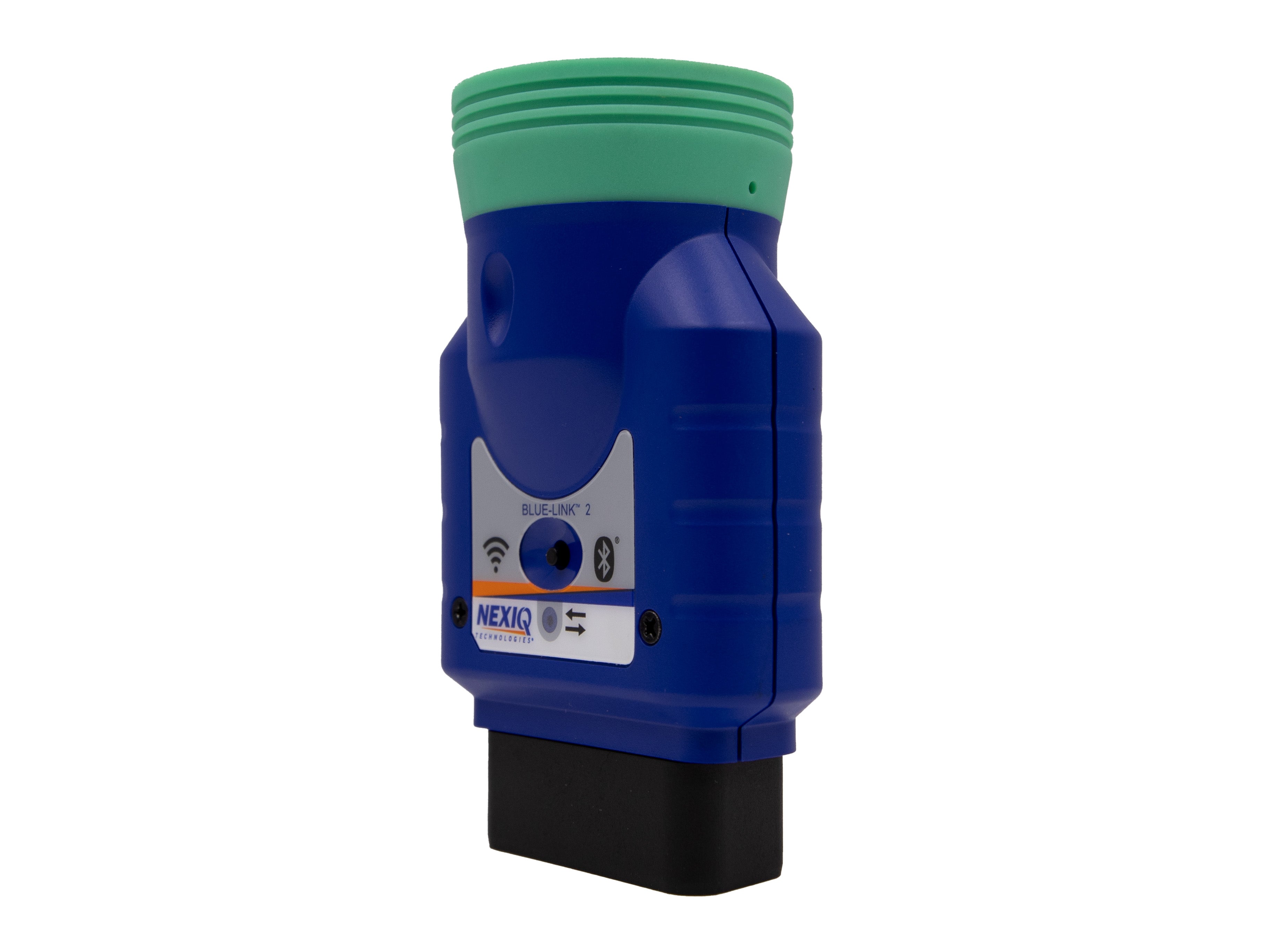

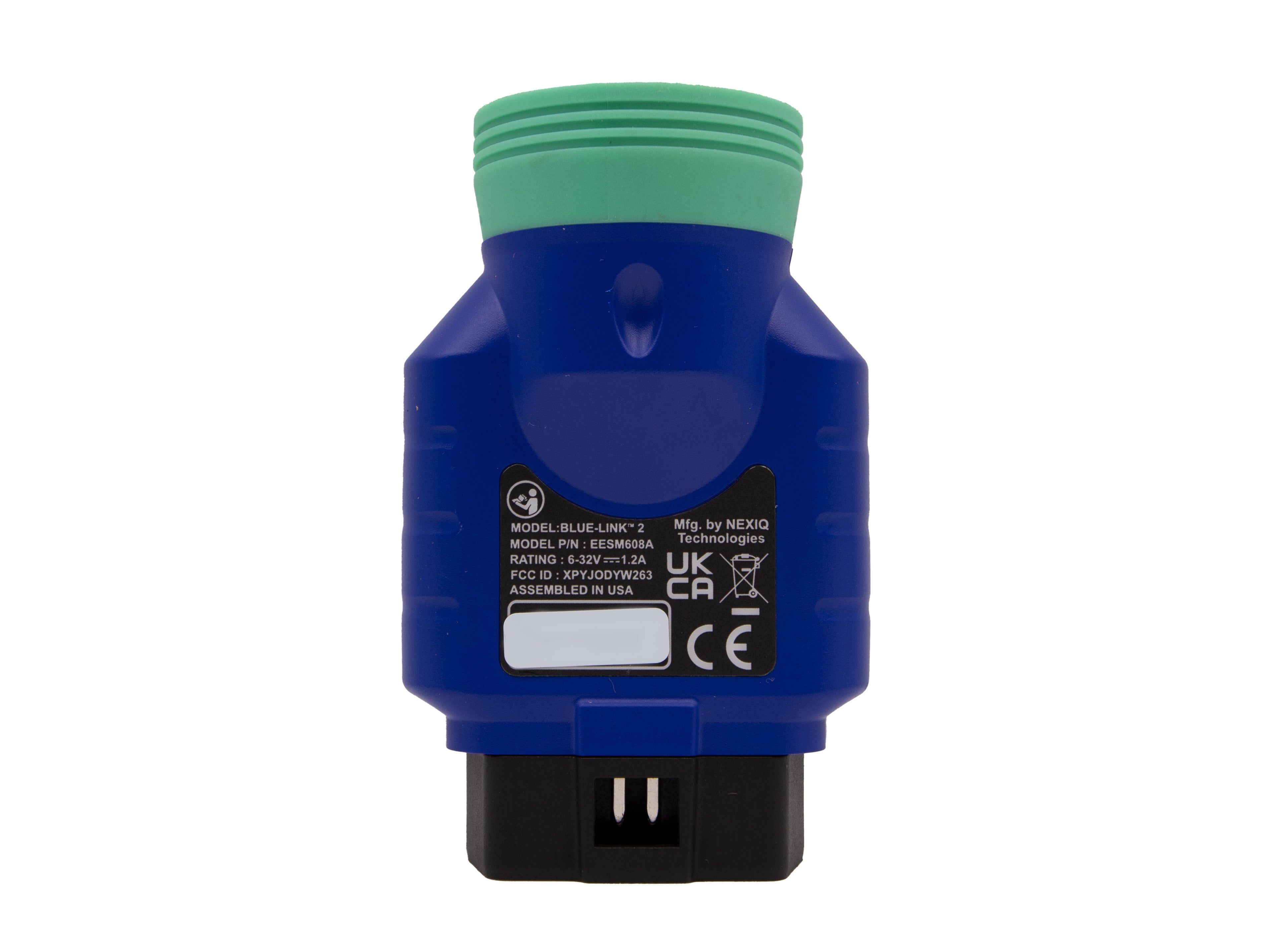

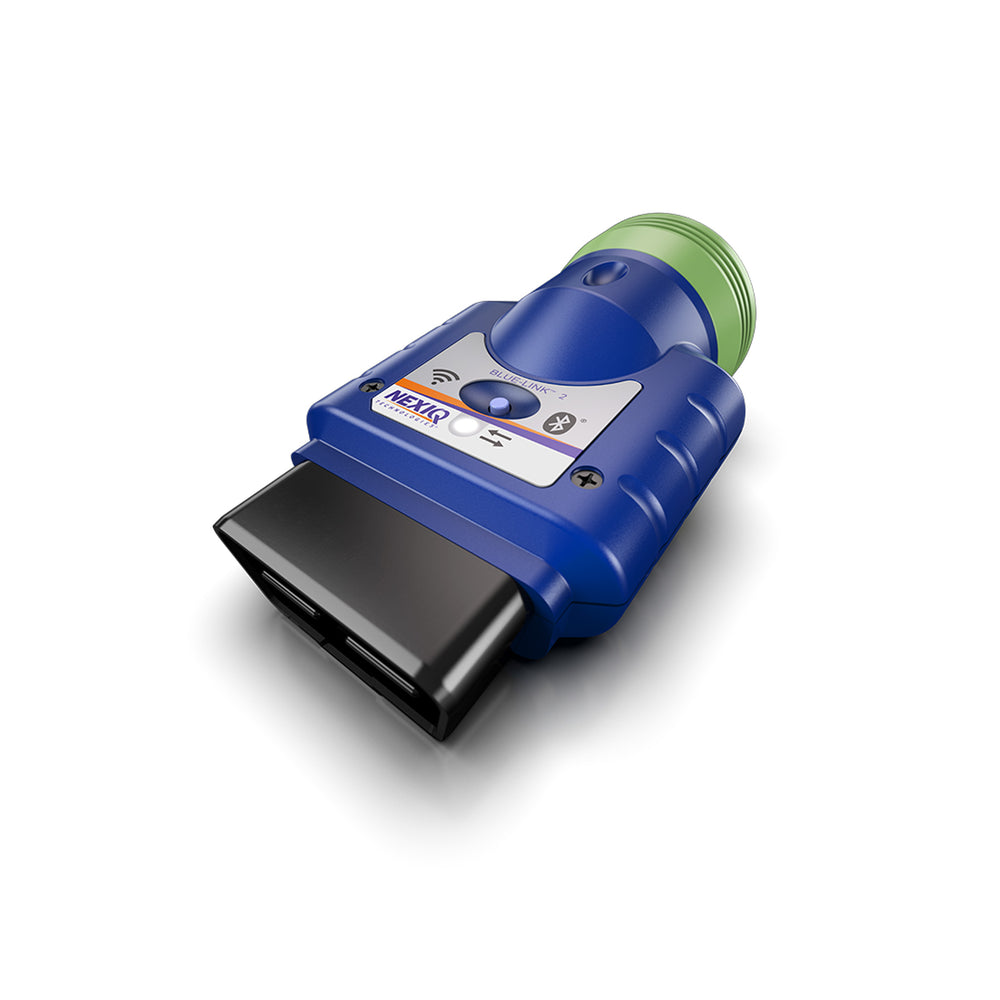

NEXIQ Blue-Link™ 2

The Blue-Link™ 2 is an incredibly convenient and easy-to-use mobile vehicle interface that enables users to seamlessly communicate with heavy-duty vehicles for quick access to basic diagnostic information. When used in conjunction with the First-Link™ app, the all-new Blue-Link™ 2 becomes a triage tool for truck drivers on the road or service writers checking in vehicles at a repair facility.

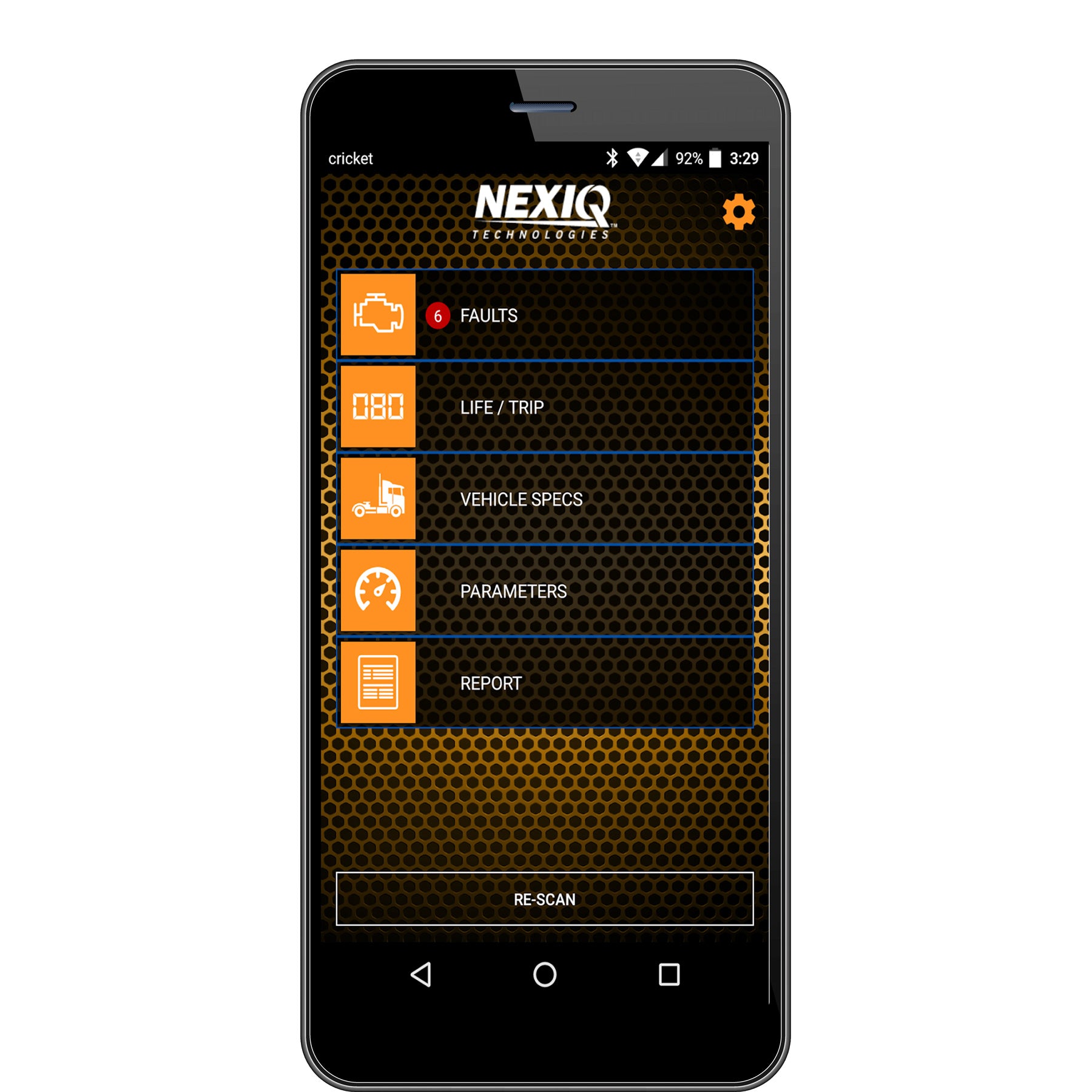

The First-Link™ App Is Available on the App Store and on Google Play

Features

• Compatible with iOS and Android devices (pairs easily with both)
• Provides the ability to export vehicle health reports generated by First-Link™ to Navistar's OnCommand® Connection.

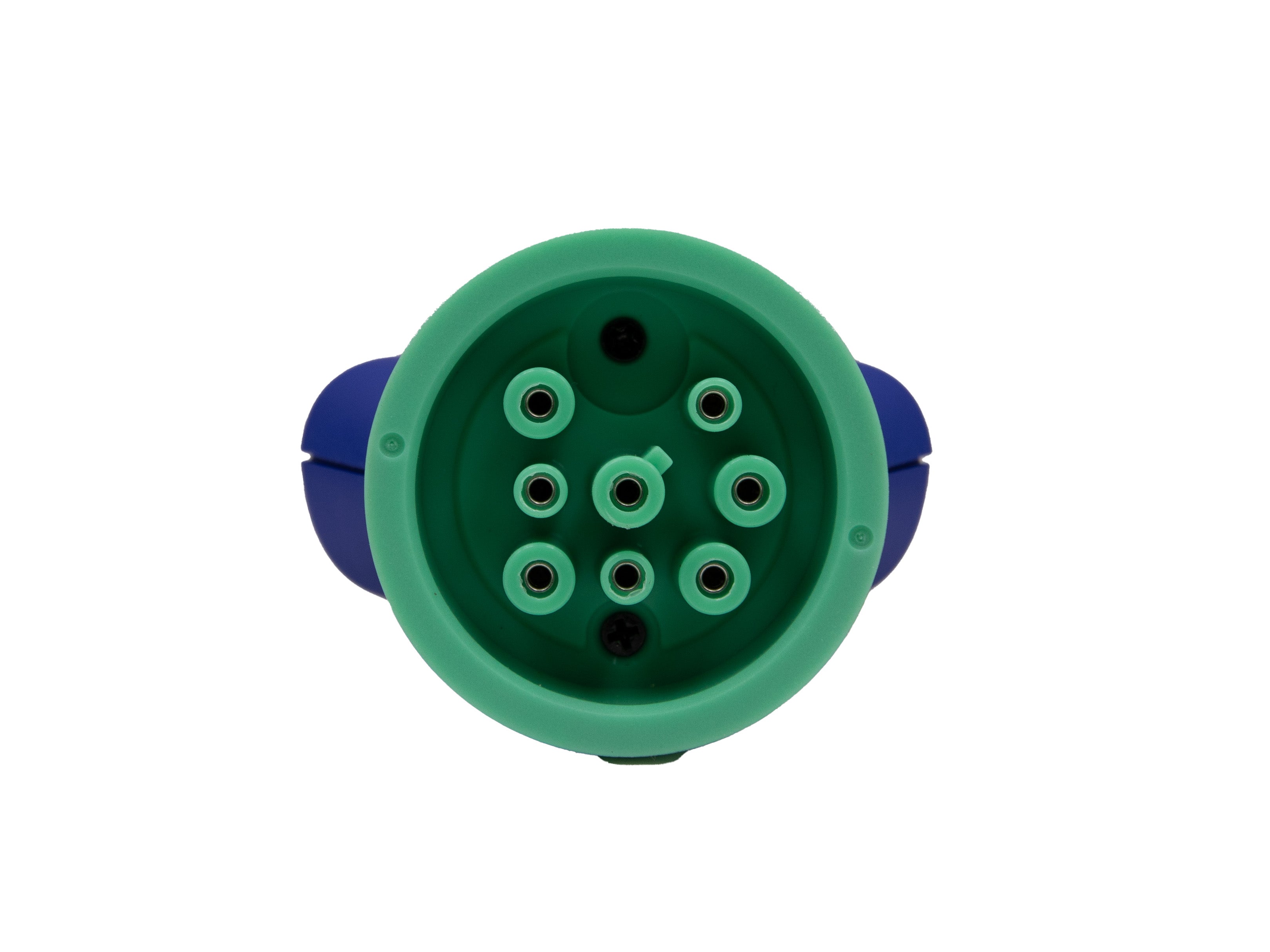

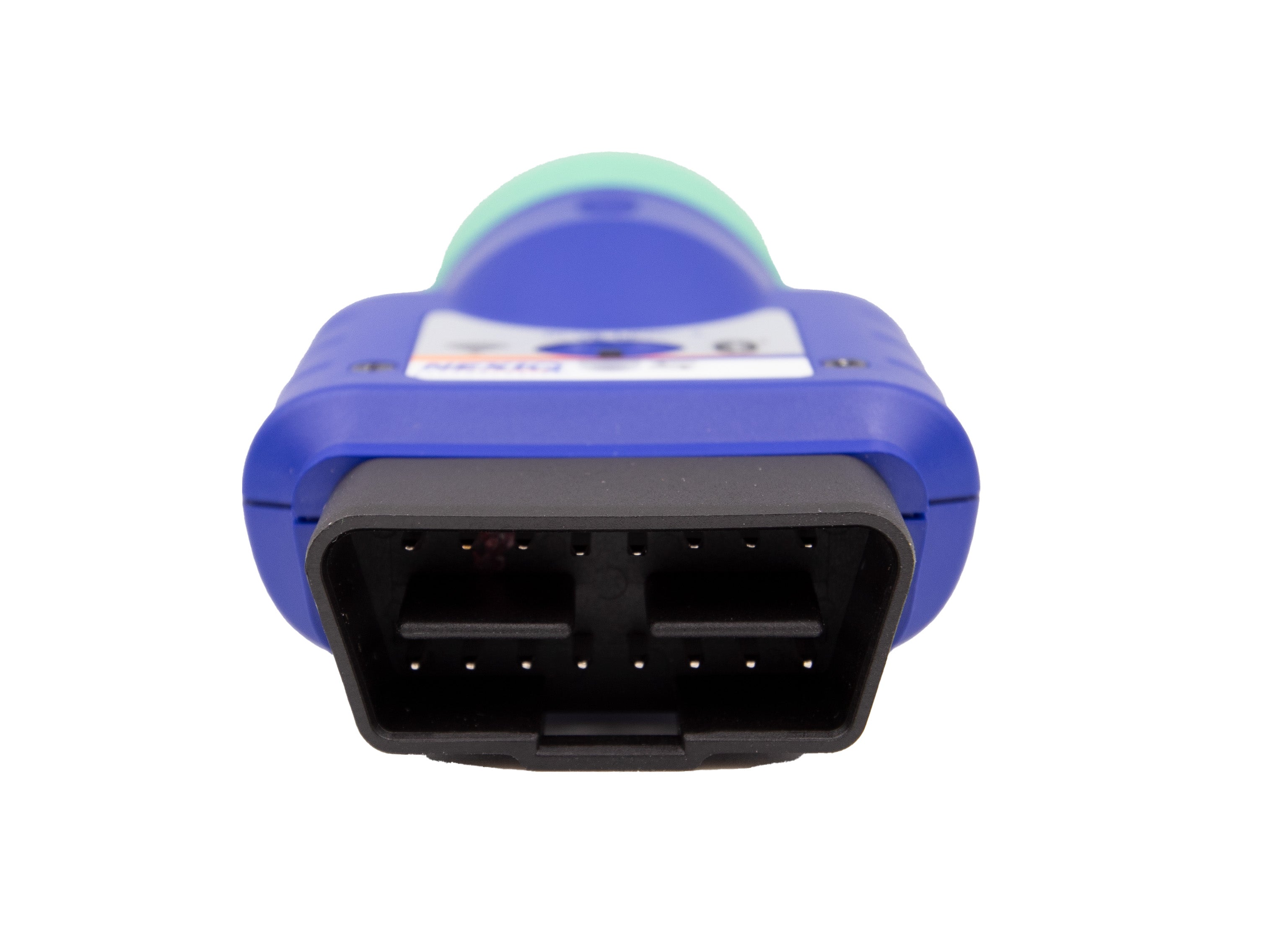

• Integrated 16-pin and 9-pin Deutsch connectors
• Simple, one-button design to put the device in Discovery mode
• RP1227 support

Easier Connectivity

Providing greater throughput than its predecessor and easier connectivity to iOS, Blue-Link™ 2 is more powerful in supporting the development of iOS and Android solutions for communicating with vehicles. Additionally, this advanced mobile vehicle interface supports CAN FD protocol and includes wired Wi-Fi connection capability.

See Support and Connections

Vehicle Network Protocol Support

• J1708
• 3 CAN Channels (CAN / J1939 / ISO15765 - 250K, 1Mb/s with Auto Baud detection
• Singe wire CAN
• ISO9141 / KWP2000 (ISO14230) K & L line

Connections

• Blue-Link - Bluetooth 5.0 LE and Classic
• Wi-Fi - 802.11 a/b/g/n/ac

Specs

• 6v - 32v Operating range
